Door/Window Casing 3-3/8" - 15
Door/Window Casing 3-3/8" - 15

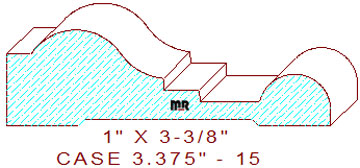

This custom 3-3/8" - 15 door/window casing measures 3.375" wide by 1.000" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The unique profile could also be utilized as one of our many base caps. The detail is composed of a 1/4" wide flat line at a 3/4" thickness dimension on the left, attached to a short elevation changing two tangent radius cyma reversa with a 1/8" vertical drop and a 3/8" wide by 1/8" step in the center, joined to a 5/8" wide sunk fillet with a 3/4" wide half round circle on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.968
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$274.00
$257.50
Total:
$531.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.50
$274.00
Total:
$564.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$315.25
$298.75
Total:
$614.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
