Door/Window Casing 3-3/8" - 24
Door/Window Casing 3-3/8" - 24

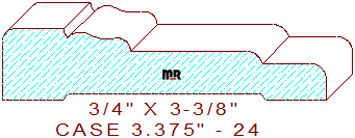

This stylish 3-3/8" - 24 door/window casing measures 3.375" wide by .750" thickness, enabling the pattern to be machined out of four-quarter lumber. The creative tiered design is composed of a 5/8" broad horizontal line with 1/8" eased outer edge, connected to a shallow 3/16" cove that merges with an elevation changing three tangent radius wave-like curves, attached to a 1-3/8" broad straight line with a 5/32" rounded edge that joins to a 21/32" wide line segment with an 11/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.717
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$274.00
$257.50
Total:
$531.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.50
$274.00
Total:
$564.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$315.25
$298.75
Total:
$614.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
