Door/Window Casing 3-13/32" - 1
Door/Window Casing 3-13/32" - 1

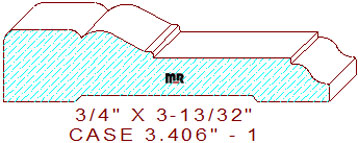

This elegant 3-13/32" - 1 door/window casing measures 3.406" wide by .750" thickness, enabling the pattern to be machined out of four-quarter lumber. The aesthetic profile is composed of a 13/16" wide raised fillet with a 1/8" round-over on the outer, and a 5/32" rolled inside edge on the top left, joined to a thumbnail shaped convex arc with a 3/32" wide by 1/16" deep perpendicular step in the center, attached to a 1-7/16" broad horizontal line segment with another 1/16" drop in elevation, merged with two tangent 3/16" radiuses creating the ogee with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.406
Depth of Cut: 0.729
Bottom Cutter Head
Width: 3.406
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.74
$259.11
Total:
$534.85
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$292.36
$275.74
Total:
$568.10
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$317.30
$300.67
Total:
$617.97
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
