Door/Window Casing 3-13/32" - 2
Door/Window Casing 3-13/32" - 2

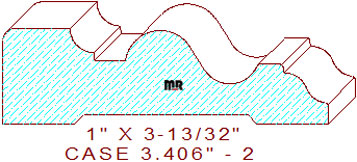

This custom 3-13/32" - 2 door/window casing measures 3.406" wide by 1.000" thickness, permitting the detail to be machined out of five-quarter lumber. The stylish colonial-themed profile is composed of a 45/64" broad line segment with a 1/8" rounded outer edge on the top left, attached to a 1/4" cove and a 5/64" vertical step that merges with a 21/64" wide sunk fillet, connected to a wave-like two-tangent radius convex and concave curvature in the center. It's joined to a 9/32" wide by 3/32" tall raised fillet that connects to a graceful down-sloping ogee leaving a 7/32" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.406
Depth of Cut: 0.959
Bottom Cutter Head
Width: 3.406
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.74
$259.11
Total:
$534.85
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$292.36
$275.74
Total:
$568.10
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$317.30
$300.67
Total:
$617.97
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
