Door/Window Casing 3-7/16" - 1
Door/Window Casing 3-7/16" - 1

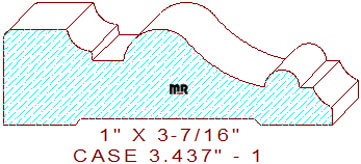

This bold colonial 3-7/16" - 1 door/window casing measures 3.437" wide by 1.000" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The classic profile is composed of a 21/32" wide horizontal line with a 1/8" eased outer edge on the left, connected to a 1/4" cove with a 7/64" vertical step that merges with a 21/64" wide sunk fillet and an elevation changing two tangent radius cyma reversa in the center, attached to a 23/64" wide half round bead that joins to a 9/64" wide line segment and an 11/32" cove with a 3/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.437
Depth of Cut: 0.969
Bottom Cutter Head
Width: 3.437
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$277.47
$260.72
Total:
$538.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$294.22
$277.47
Total:
$571.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$319.34
$302.59
Total:
$621.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
