Door/Window Casing 3-7/16" - 4
Door/Window Casing 3-7/16" - 4

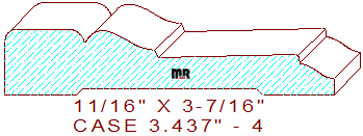

This fancy 3-7/16" - 4 door/window casing measures 3.437" wide by .687" thickness, allowing the detail to be machined out of four-quarter lumber. The modern profile is composed of a 27/64" broad line segment with a 1/8" eased outer edge and a 3/16" rounded inside edge on the top left, attached to a two tangent radius cyma reversa with a 5/64" beveled step that merges with an up-sloping 1.215 angled line in the center, joined to a 3/32" vertical step with a small shallow two tangent radius ogee on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.437
Depth of Cut: 0.523
Bottom Cutter Head
Width: 3.437
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$260.72
$260.72
Total:
$521.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$277.47
$277.47
Total:
$554.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.59
$302.59
Total:
$605.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
