Casing Moulding 3-7/16" - 6

Casing Moulding 3-7/16" - 6

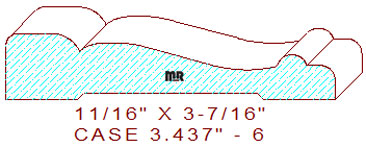

This Casing Moulding 3-7/16" - 6 measures 3.437" wide by .687" thickness, with a .625" depth of cut on the top horizontal moulder cutters, please search our backout category for a suitable relief cut for this detail, we have a few to choose from.

The profile is comprised of a 1/8" radius edge fillet, attached to a 21/64" radius that transitions into a shallow elongated cyma reversa, with a 5/16" wide half round circle joined to a 5/32" radius edge fillet, positioned on the thin side of the pattern.

Try one of our Ultimate Borazon grinding wheels, sharpening at 3000 RPM’s will create a superior micro finished edge on all your high-speed steel moulding knives, after grinding, these knives will be capable of milling the finest quality architectural mouldings you have ever set your eyes on.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
