Door/Window Casing 3-15/32" - 5
Door/Window Casing 3-15/32" - 5

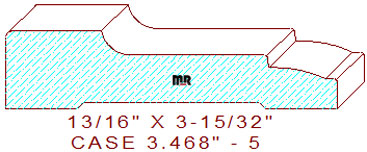

This gorgeous 3-15/32" - 5 door/window casing measures 3.468" wide by .812" thickness, permitting the use of four-quarter lumber for milling on an industrial-grade molder. The beautifully unique profile contains a one-inch broad flat line with a 1/16" rolled outer edge on the top left. This section joins to a 1-3/4" wide by 1/4" deep cong'e derived from a 5/16" radius cove in the center. Attached to a 1/8" drop-in elevation that merges with a shallow 1-5/16" convex semicircular arc and a 1/8" line segment with a 3/64" eased edge, leaving a 5/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.468
Depth of Cut: 0.687
Bottom Cutter Head
Width: 3.468
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.21
$262.34
Total:
$541.54
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$296.08
$279.21
Total:
$575.29
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$321.39
$304.52
Total:
$625.90
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
