Door/Window Casing 3-15/32" - 6

Door/Window Casing 3-15/32" - 6

Door/Window Casing 3-15/32" - 6

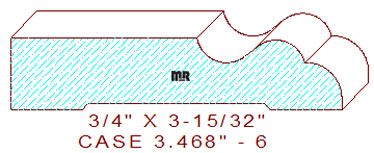

This lovely 3-15/32" - 6 door/window casing measures 3.468" wide by .750" thick. The profile is comprised of a 1.953" wide fillet attached to a cyma recta that transitions into a 3/8z" radius quarter circle on the thin portion of the pattern. Try utilizing one of our many decorative backbands to create a unique, compelling door casing for your project.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.468
Depth of Cut: 0.750
Bottom Cutter Head
Width: 3.468
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$270.77
$253.90
Total:
$524.67
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$287.64
$270.77
Total:
$558.42
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$304.52
$287.64
Total:
$592.16
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
