Casing Moulding 3-1/2"

Casing Moulding 3-1/2"

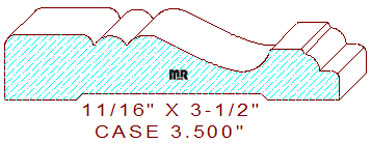

This Stylish Casing Moulding 3-1/2" measures 3.500" wide by .687" thickness with a .593" depth of cut of on the top set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few available options for you to choose from.

The custom profile is comprised of a 15/16" wide double 1/8" radius edge fillet, connected to a recessed 3/16" radius half round circle which transitions into a deep sloping cyma reversa, attached to a raised fillet joined with a 3/16" radius quarter round bead with a 3/32" radius eased edge fillet on the thin side of the pattern.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
