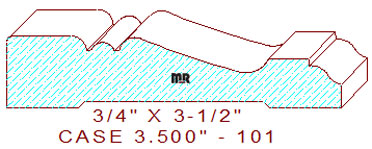

The profile is comprised of a double radius edge fillet, connected to a half round circle flanked by sunken fillets, attached to a sloping cyma reversa, joined to a 7/16" wide raised fillet with another smaller cyma reversa located on the thin side of the pattern.
Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection, on any brand of industrial style moulder machinery.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
