Case Moulding 3-1/2" - 105

Case Moulding 3-1/2" - 105

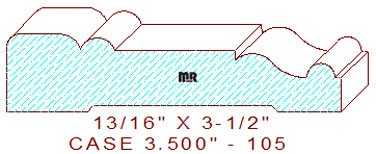

This stylish casing moulding 3-1/2" - 105 measures 3.500" wide by .812" thickness, with a .615" depth of cut on the top horizontal cutters. Search our backout category for a suitable relief cut for this detail, we have a few options to choose from.

The profile is comprised of a double radius edge fillet, connected to a 3/16" radius half round circle, that transitions into a straight horizontal line in the middle, attached to a small vertical fillet and cyma reversa, joined to a 5/16" wide half round circle with a tiny eased edge fillet on the thin side of the pattern.

Architects, interior designers, lumber mills and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home.

Please read our commentary, Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection, on any brand of industrial style moulder machinery.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
