Casing Moulding 3-1/2" - 110

Casing Moulding 3-1/2" - 110

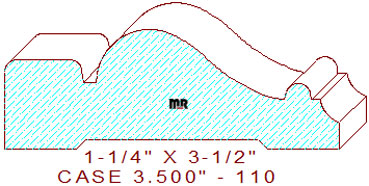

This elegantly bold casing moulding 3-1/2" - 110 measures 3.500" wide by 1.250" thickness, allowing the pattern to be milled from six quarter lumber. The colonial era profile is comprised of a 13/16" wide double eased edge raised fillet at an elevation of 15/16" on the left side, connected to a 1/8" wide by 13/64" deep sunk fillet that transitions into a deep sloping two tangent radius cyma reversa, attached to a slightly elliptically shaped 9/32" wide half round bead that merges with a 3/32" wide line segment and a 5/16" cove on the thin side of the detail. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide sufficient blend areas on the knives so you will never realize where one cutter begins or ends, these specific design features will substantially increase yield during the milling process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = 1.125" (top knives) & .125" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
