Door/Window Casing 3-1/2" - 123
Door/Window Casing 3-1/2" - 123

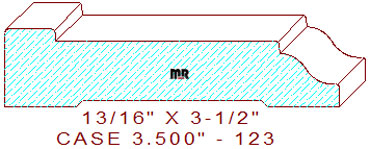

This lovely 3-1/2" - 123 door/window casing measures 3.500" wide by .812" thickness. The custom stepped profile comprises a 17/32" wide by 1/8" tall raised fillet with an eased edge, connected to a 2-11/32" wide by 1/8" deep stepped lines, joined to two tangent 21/64" radius arcs forming an ogee, leaving a 1/4" thickness dimension on the thin side of the design. There is also a 4" version of this pattern inside the downloadable dxf file (not shown,) we offer a 3-1/4" version of this pattern for your review and consideration, door/window casing 3.250" - 103. We have many baseboards that will complement this pattern. Here is just one option for your review and consideration, baseboard 7.000" - 40.<
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.770
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$264.00
Total:
$545.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
$281.00
Total:
$579.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
$306.50
Total:
$630.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
