Door/Window Casing 3-1/2" - 129
Door/Window Casing 3-1/2" - 129

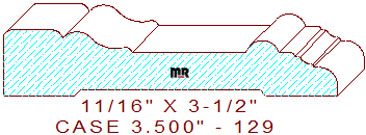

This beautiful 3-1/2" - 129 door/window casing measures 3.500" wide by .687" thickness, permitting the detail to be machined out of four-quarter lumber. The lovely profile is comprised of a 5/8" wide raised fillet with a 3/32" eased outer and a 1/8" rounded inner edge on the top left, connected to a short S-shaped curvature that joins to a 1-3/16" broad line segment in the center, merged with an 11/32" half round bead, attached to a 5/32" fillet, 1/8" cove and a 3/16" quarter round on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.654
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$264.00
Total:
$545.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
$281.00
Total:
$579.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
$306.50
Total:
$630.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
