Door/Window Casing 3-1/2" - 136
Door/Window Casing 3-1/2" - 136

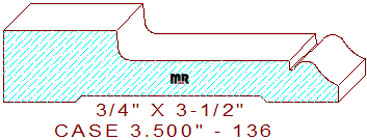

This unique 3-1/2" - 136 door/window casing measures 3.500" wide by .750" thickness. The distinctive profile is comprised of a 1-3/16" broad straight line that transitions downward 5/16" with a 1/8" radius cove that is tangent off a 1-13/16" flat line in the center. It's attached to a tiny 3/64" wide sunk fillet and a small two tangent radius cyma reversa on the thin side of the design. Try utilizing one of our many different fancy backbands profiles on the side edge of this pattern, create a stylish and unique door casing design for your beautiful home or office, alter the search parameters to find the width backband that best fits your architectural style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.614
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.00
$264.00
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$281.00
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$306.50
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
