Casing Moulding 3-1/2" - 14

Casing Moulding 3-1/2" - 14

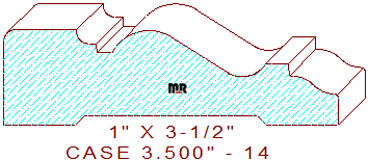

This hefty casing moulding 3-1/2" - 14 measures 3.500" wide by 1.000" thickness requiring five quarter lumber for milling on a industrial style molder. The colonial era profile is comprised 3/4" wide horizontal line with a 1/8" eased outer edge, connected to a 1/8" cove with a 3/32" vertical step and a 5/32" wide sunk fillet, joined to a deep down sloping french curve that transitions into a 1/4" wide raised fillet with a small ogee on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find one to suit your needs.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .843" (top knives) & .093" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
