Door/Window Casing 3-1/2" - 144

Door/Window Casing 3-1/2" - 144

Door/Window Casing 3-1/2" - 144

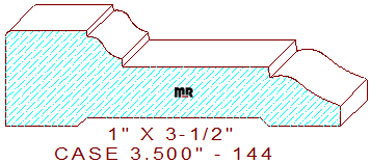

This bold 3-1/2" - 144 door/window casing measures 3.500" width by 1.000" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The colonial-themed profile contains a 27/32" broad line segment with a 1/16" rolled outer edge and a tiny ogee flanked by elevation changing vertical lines on the top left. This area joins a 1-17/32" flat line segment in the center to a vertical step downward and another larger ogee with a 3/64" eased edge on the right corner of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.967
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$255.50
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$272.50
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$289.50
Total:
$596.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
