Case Moulding 3-1/2" - 146

Case Moulding 3-1/2" - 146

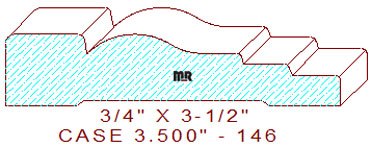

This alluring case moulding 3-1/2" - 146 measures 3.500" wide by .750" thickness, with a .594" depth of cut on the top horizontal profile knives. Search our backout category for an appropriate relief cut for this pattern, we have a few profiles for you to select from.

The attractive profile is comprised of a 27/64" wide raised fillet with a 3/32" radius outside edge and a 1/16" inside radius edge, this area transitions into an elongated cyma reversa with a 1/16" radius, connected to two 1/2" wide stepped horizontal lines also with 1/16" radius edges, leaving a 5/16" thickness dimension on the thin side of the pattern.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel profile knives. Here is an article to help you understand how to align a CBN/borazon wheel to axial constant position on a Weinig R 960 profile knife grinder. During the machining process the moulding knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.
