Door/Window Casing 3-1/2" - 169
Door/Window Casing 3-1/2" - 169

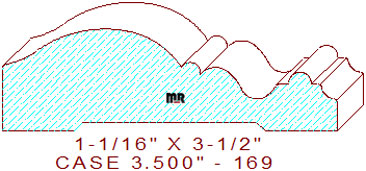

This sophisticated 3-1/2" - 169 door/window casing measures 3.500" wide by 1.062" thickness, necessitating the use of five quarter lumber for milling on an industrial moulder. The luxurious profile composes a large 1-15/64 convex arc tangent to a 27/32" concave semicircle with a 3/64" eased edge on the top left, attached to a 7/32" wide half round bead that joins to a smooth s-shaped curvature in the center, merged with a 15/64" bead flanked by two 3/32" line segments and a 9/64" cove with a 3/64" round-over on the right side of the design. Although we have a large assortment of baseboard designs that would complement this profile, we think you may want to review and consider this detail, baseboard 6.000" -194.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.992
Bottom Cutter Head
Width: 3.050
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$240.60
Total:
$521.60
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
$255.80
Total:
$553.80
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
$278.60
Total:
$602.10
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
