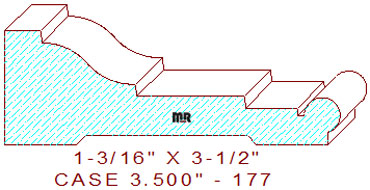

This pencil-bead 3-1/2" - 177 door/window casing measures 3.500" wide by 1.187" thickness. The stylish profile is comprised of a 3/8" wide segment with a 1/8" vertical step connected to two 5/8" tangent radiuses creating a ogee also with a 1/8" vertical step on the top left. It's joined to a 1-1/8" wide and a 9/16" wide flat lines with vertical lines used to transition in the center. They attach to a 1/16" wide sunk fillet with a 3/8" round pencil bead on the thin side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.187
Depth of Cut: 0.187
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.886
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.72
Not Needed
$281.00
$264.00
Total:
$688.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.47
Not Needed
$298.00
$281.00
Total:
$730.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$163.09
Not Needed
$323.50
$306.50
Total:
$793.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
