Casing Moulding 3-1/2" - 183

Casing Moulding 3-1/2" - 183

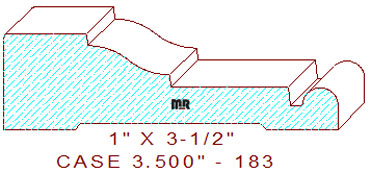

This elegant casing moulding 3-1/2" - 183 measures 3.500" wide by 1.000" thickness. The intricate profile is comprised of a 7/8" wide by 1/8" deep stepped line with a 1/16" eased edge, attached to two tangent 11/16" radiuses creating a cyma reversa, connected to a 1-1/4" wide horizontal line, joined to a 1/8" wide by 13/64" deep sunk fillet with a 3/8" half round circle on the thin side of the pattern. We have a similar version of this design in the same width but with different internal dimensions for your review and consideration, casing 3.500" - 18. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

This professionally drafted cad dxf file contains two high precision moulding template designs to create cutters for this gorgeous casing detail, one does not have the 1/16" radius on the outer edge, that design allows for one of our many attractive back band's to be utilized as well as width size changes to be made. From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .906" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
