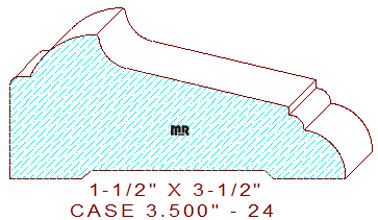

This beak-shaped 3-1/2" - 24 door casing measures 3.500" wide by 1.500" thickness. The design is comprised of a 3/32" radius edge fillet at 1-1/16" elevation connected to a beak profile that slopes downward and transitions into a stepped fillet with two cascading quarter round beads attached on the thinner side of the pattern. The profile is too large to be milled with a single set of knives. The quarter-round beads and fillet are milled on the right vertical cutter head, and the remaining portion of the pattern is milled with the top cutter head.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.586
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.803
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
Not Needed
$281.00
$264.00
Total:
$705.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
Not Needed
$298.00
$281.00
Total:
$748.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
Not Needed
$323.50
$306.50
Total:
$812.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
