Door/Window Casing 3-1/2" - 27
Door/Window Casing 3-1/2" - 27

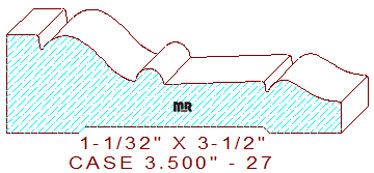

This delightful 3-1/2" - 27 door/window casing measures 3.500" wide by 1.031" thickness. The profile comprises an 11/32" wide fillet attached to a cyma reversa connected to an elliptical-shaped half-round bead that's joined to a tapered fillet with another smaller cyma reversa on the right side of the pattern. The thicker side of the detail retains a sharp edge for using the profile as a window stool apron. Still, it can quickly be rounded with the radius of your choice, or even add one of our beautiful backband details for an extravagant architectural appeal.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.895
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$264.00
Total:
$545.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
$281.00
Total:
$579.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
$306.50
Total:
$630.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
