Door/Window Casing 3-1/2" - 3
Door/Window Casing 3-1/2" - 3

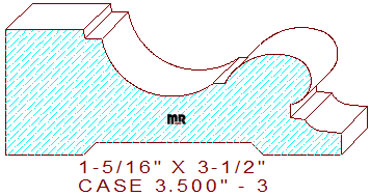

This extravagant 3-1/2" - 3 door/window casing measures 3.500" wide by 1.312" thickness, requiring the use of six-quarter lumber for milling on an industrial moulder. The striking profile composes a 13/16" wide by 3/32" tall raised fillet on the left, this area was left square for utilizing any of our eased edge profiles, connected to a 3/4" radius scotia flanked by a 3/16" line on the left and a 1/8" wide line on the right. It's attached to a three-quarter elliptical-shaped arc with a small right-angled line and a 15/64" shallow cove on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.312
Depth of Cut: 0.582
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.700
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$150.22
Not Needed
$281.00
$264.00
Total:
$695.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$158.47
Not Needed
$298.00
$281.00
Total:
$737.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$170.84
Not Needed
$323.50
$306.50
Total:
$800.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
