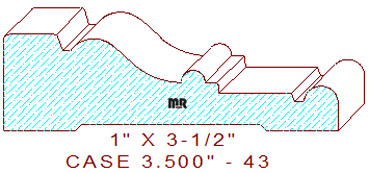

This Stylish Casing Moulding 3-1/2" - 43 measures 3.500" wide by 1.000" thickness with a .874" depth of cut on the top horizontal moulding cutters. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from.
The intricate profile is comprised of a 5/8" wide straight line with a double eased edge, connected to a 5/64" wide sunk fillet, attached to a two tangent radius cyma reversa that transitions into a 1/8" radius half round circle with a small elevation changing step, joined to a 3/4" wide horizontal line with a 3/32" wide sunk fillet and a 23/64" wide half round circle on the thin side of the pattern.
Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your client's beautifully elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
