Door/Window Casing 3-1/2" - 47
Door/Window Casing 3-1/2" - 47

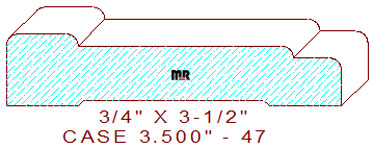

This tiered 3-1/2" - 47 door/window casing measures 3.500" width by .750" thickness, permitting a 3-3/4" wide blank of four-quarter lumber for milling on an industrial moulder. The decorative profile comprises three different-sized stepped fillets. The outer left portion is 3/4" wide by 1/8" deep; the middle step is 2-1/4" across with a 1/8" drop that transitions into a 1/2" fillet on the patterns right side; each transitional drop in elevation uses a 1/8" rolled edge. We offer a couple of alternative widths of this detail, one smaller and the other larger, for your review and consideration, door/window casing 3.250" - 67 and door/window casing 4.500" - 51.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.531
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.00
$264.00
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$281.00
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$306.50
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
