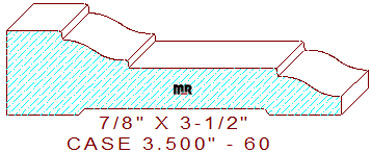

This four-tier 3-1/2" - 60 door/window casing measures 3.500" wide by .875" thickness, necessitating five-quarter lumber for milling. The attractive pattern composes a 37/64" broad horizontal line with a 3/32" vertical step, connected to a small ogee consisting of a 1/2" and 5/8" tangent radiuses with a 5/64" steep drop, joined to a 1-9/16" line segment with a 3/32" elevation change that merges with another similar ogee made from two 1/2" radius semicircles. Four-quarter lumber is feasible for this detail if the feed rollers on the machine are kept within the area of the profile that gets milled away by the top cutter head.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.688
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
