Casing Moulding 3-1/2" - 78

Casing Moulding 3-1/2" - 78

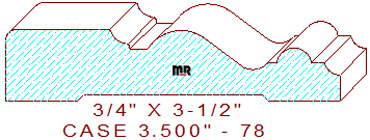

This colonial casing moulding 3-1/2" - 78 measures 3.500" wide by .750" thickness. The decorative profile is comprised of a 1-3/32" wide straight line with a 1/8" eased outer edge, connected to a 3/16" cove that transitions into a 3/16" wide sunk fillet, attached to a two tangent radius cyma reversa joined to a 3/8" wide half round circle flanked by small horizontal lines with a 11/64" radius cove on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We have a couple of other similar profiles in the same width for your review and consideration, casing 3.500" - 6, casing 3.500" - 36, casing 3.500" - 79, and casing 3.500" - 84. Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .625" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
