Casing Moulding 3-1/2" - 96

Casing Moulding 3-1/2" - 96

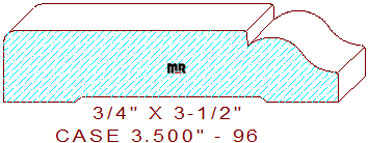

This modest door casing moulding 3-1/2" - 96 measures 3.500" wide by .750" thickness, allowing the detail to be machined from four quarter lumber. The basic profile is comprised of a 2-9/16" wide line segment with a 1/8" eased outer edge on the left, connected to a 5/32" vertical line that transitions the elevation to a two tangent radius ogee with a 3/64" eased edge, leaving a 5/16" thickness dimension on the right side of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs. We also have another similar casing and a stylish baseboard that will compliment this design for your review and consideration, casing 3.500" - 204 and base 5.750" - 29.

Become professionally efficient while searching over 15,000 mouldings in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .625" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
