Door/Window Casing 3-9/16" - 2
Door/Window Casing 3-9/16" - 2

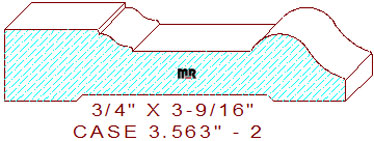

This stylish 3-9/16" - 2 door/window casing measures 3.563" wide by .750" thickness, permitting the detail to be milled out of four-quarter lumber. The unique profile is composed of a 1-27/64" broad line segment with a 3/64" vertical step on the top left inside edge, joined to a three tangent radius ogee and a 1-1/4" wide sunk fillet in the center, attached to a two tangent radius cyma reversa with a 3/64" eased edge on the right side of the design. Try utilizing one of our many different fancy backband profiles on the outer edge of this pattern, create a stylish and unique door casing for your beautiful home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.563
Depth of Cut: 0.700
Bottom Cutter Head
Width: 3.563
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$284.53
$267.28
Total:
$551.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$301.78
$284.53
Total:
$586.31
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$327.66
$310.41
Total:
$638.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
