Door/Window Casing 3-9/16" - 4

Door/Window Casing 3-9/16" - 4

Door/Window Casing 3-9/16" - 4

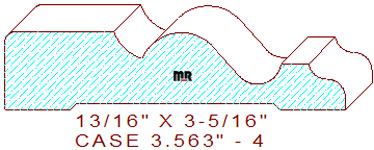

This attractive 3-9/16" - 4 door/window casing measures 3.563" wide by .813" thickness, allowing the detail to be milled from four-quarter lumber. The graceful profile is composed of a 1-9/64" broad flat line with a 1/8" rounded edge on the top left, joined to a 15/32" cove that merges with a deep down-sloping two tangent radius cyma reversa in the center, connected to a 9/32" wide raised fillet with a two tangent radius ogee on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.563
Depth of Cut: 0.781
Bottom Cutter Head
Width: 3.563
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.90
$258.65
Total:
$534.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$293.15
$275.90
Total:
$569.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.41
$293.15
Total:
$603.56
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
