Door/Window Casing 3-5/8" - 1
Door/Window Casing 3-5/8" - 1

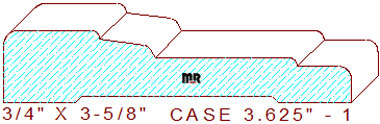

This beautifully 3-5/8" - 1 tiered door/window casing measures 3.625" wide by .750" thickness, allowing the detail to be cut out of four-quarter lumber. The designer profile is composed of a one-inch broad flat line with a 5/32" outer and a 3/32" eased inner edge on the top left, attached to a 9/16" wide down-sloping angled line with a 3/32" rounded edge, connected to a 1-1/2" broad line segment with another 3/32" round-over in the center, merged with a 9/16" horizontal line with a 1/8" eased edge leaving a 3/8" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 0.625
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
