Door/Window Casing 3-5/8" - 10
Door/Window Casing 3-5/8" - 10

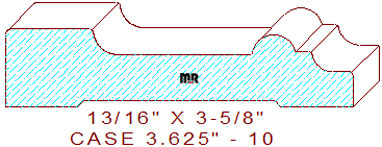

This custom 3-5/8" - 10 door/window casing measures 3.625" wide by .812" thickness, allowing the pattern to be cut out of four-quarter lumber. The appealing profile is composed of a 59/64" wide flat line with a 1/16" eased outer edge on the top left, connected to a 1-21/32" wide cong'e derived from a 1/4" radius cove in the center, attached to a 29/64" half circle merged to an 11/64" horizontal fillet and a 7/32" cove with a 3/64" eased edge leaving a 3/8" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 0.609
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$270.50
$270.50
Total:
$541.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$288.00
$288.00
Total:
$576.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$314.25
$314.25
Total:
$628.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
