Door/Window Casing 3-5/8" - 11
Door/Window Casing 3-5/8" - 11

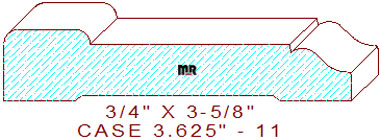

This modern 3-5/8" - 11 door/window casing measures 3.625" wide by .750" thickness, enabling the pattern to be machined out of four-quarter lumber. The stylish profile is comprised of a 29/32" wide raised fillet with 5/32" rounded edges on the top left, attached to a 1-3/32" broad flat line with a 3/32" vertical step in the center, joined to a two tangent radius ogee with a 3/63" eased edge leaving a 5/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 0.643
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$288.00
$270.50
Total:
$558.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$305.50
$288.00
Total:
$593.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$331.75
$314.25
Total:
$646.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
