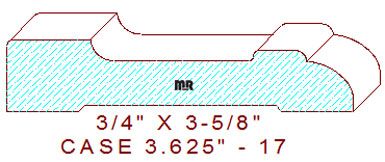

This case moulding measures 3-5/8" wide by 3/4" thickness, the pattern contains the following geometrical shapes, a 7/8" wide radius edge fillet, a 1-3/4" wide cong'e, an elevated double radiused edge fillet, and a two tangent elliptical shaped arc which is positioned on the thinner side of the detail. Please note: the moulding knives will come withing .020" of contacting the bed plates while milling this pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
