Casing Moulding 3-5/8" - 4

Casing Moulding 3-5/8" - 4

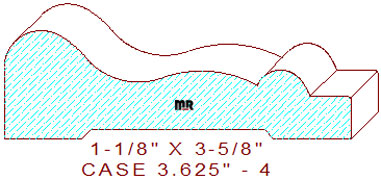

This graceful casing moulding 3-5/8" - 4 measures 3.625" wide by 1.125" thickness requiring at least five quarter lumber to mill this pattern on an industrial moulder. The elegant profile is comprised of a combination of three tangent free flowing radiuses rolling downward to a elliptical shaped half round circle, attached to a 7/16" wide horizontal line with an eased edge on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.625" / Depth of Cut = .863" (top knives) & .093" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
