Door/Window Casing 3-11/16"
Door/Window Casing 3-11/16"

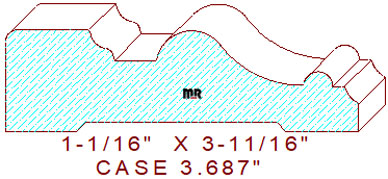

This colonial 3-11/16" door/window casing measures 3.687" wide by 1.063" thickness, enabling the detail to be milled from five-quarter lumber. The traditional profile is composed of a 7/8" broad flat line with a 1/8" eased edge on the top left, connected to an elevation changing cyma recta that joins to a 7/16" wide sunk fillet, attached to a 3/8" radius arc tangent off of a 1-1/16" concave semicircle that creates the cyma reversa in the center, merged to a 5/16" wide half round bead that transitions into a 1/8" broad line segment and a 1/4" cove with a 3/64" rounded edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.688
Depth of Cut: 0.948
Bottom Cutter Head
Width: 3.688
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.53
$273.78
Total:
$565.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.28
$291.53
Total:
$600.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.91
$318.16
Total:
$654.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
