Door/Window Casing 3-11/16" - 3
Door/Window Casing 3-11/16" - 3

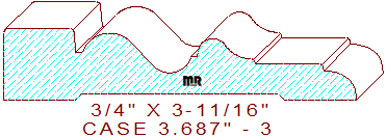

This stylish 3-11/16" - 3 door/window casing measures 3.687" wide by .750" thickness, allowing the detail to be milled from four-quarter lumber. The extravagant profile is composed of a 3/4" wide by 1/4" tall raised fillet with 3/64" eased edges on the top left, connected to a 5/64" wide sunk fillet that transitions into a down-sloping two tangent radius cyma reversa with a 1/16" broad line segment in the center, joined to a smaller cyma reversa with a tiny vertical step, that merges to a 23/32" broad straight line with another small step and a two tangent radius elliptical shaped arc on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.688
Depth of Cut: 0.750
Bottom Cutter Head
Width: 3.688
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.53
$273.78
Total:
$565.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.28
$291.53
Total:
$600.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.91
$318.16
Total:
$654.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
