Door/Window Casing 3-11/16" - 7
Door/Window Casing 3-11/16" - 7

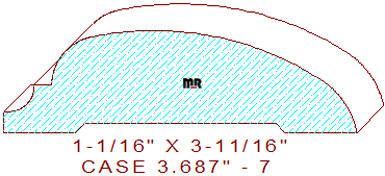

This clam-shell-shaped 3-11/16" - 7 door/window casing measures 3.687" wide by 1.062" thickness, enabling the detail to be machined out of five-quarter lumber. The streamlined profile is composed of a three tangent radius arc in the center, flanked by a 3/16" broad line segment that joins to a 1/4" cove with a 3/64" eased edge on the left side of the pattern. We offer a similar more minor version of this design for your review and consideration, door/window casing 2.437" - 5.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.688
Depth of Cut: 1.062
Bottom Cutter Head
Width: 3.688
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$248.53
(Template not needed)
$230.78
(Template not needed)
Total:
$479.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$266.28
(Template not needed)
$248.53
(Template not needed)
Total:
$514.81
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$292.91
(Template not needed)
$275.16
(Template not needed)
Total:
$568.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
