Door/Window Casing 3-11/16" - 8
Door/Window Casing 3-11/16" - 8

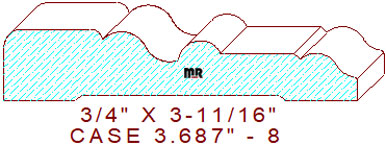

This aesthetically pleasing 3-11/16" - 8 door/window casing measures 3.687" wide by .750" thickness, authorizing the use of four quarter lumber for milling on an industrial moulder. The stunning profile is composed of a 1-1/32" wide line with a 3/16" rounded outer, and a 1/8" rolled inner edge on the top left, connected to a wavy s-shaped curvature consisting of two 9/32" radius semicircles joined to a 7/16" wide thumbnail shaped arc in the center, attached to a 53/64" flat line segment with a small bevel that merges to a two tangent radius ogee with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.687
Depth of Cut: 0.694
Bottom Cutter Head
Width: 3.687
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.47
$273.72
Total:
$565.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.22
$291.47
Total:
$600.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$335.84
$318.09
Total:
$653.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
