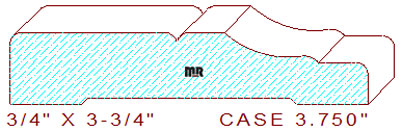

This Creative Casing Moulding 3-3/4" measures 3.750" wide by .750" thickness, with a .625" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The stylish profile is comprised of a 1-3/4" wide double 1/8" radius edge fillet, connected to a 1/2" wide fillet with a 1/8" radius edge, these form a decorative vee shaped groove, joined to a 1" radius cove which is tangent off a 3/16" radius arc, joined to a 33/64" horizontal line with a 1/8" radius edge on the patterns thin side.
Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative moulding knife designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
