Door/Window Casing 3-3/4" - 15
Door/Window Casing 3-3/4" - 15

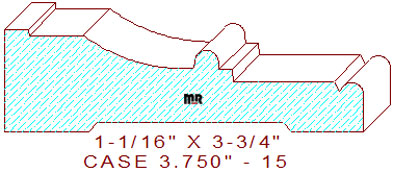

This distinctively classy 3-3/4" - 15 door/window casing measures 3.750" wide by 1.062" thickness, requiring five-quarter lumber for milling. The elegant profile is composed of a 1/4" wide by 1/16" deep stepped line joined to a 9/16" wide line segment on the left, attached to a shallow 1-49/64" cove that merges with a towering 1/4" wide bead and a 1/8" squared step in the middle, connected to a 1-1/16" wide flat line with a 1/16" beveled edge that joins to another 1/4" wide half circle on the right side of the pattern. Try utilizing one of our many different fancy backband profiles on the outer edge of this pattern, create a stylish and unique door casing design for your beautiful home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 0.843
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$295.00
$277.00
Total:
$572.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$295.00
Total:
$608.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.00
$322.00
Total:
$662.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
