Casing Moulding 3-3/4" - 2

Casing Moulding 3-3/4" - 2

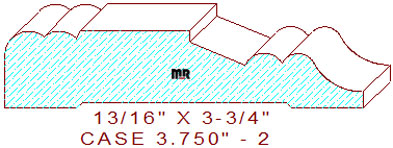

This decorative casing moulding 3-3/4" - 2 measures 3.750" wide by .812" thickness, allowing the detail to be milled from four quarter lumber. The beaded profile is composed of two one-quarter inch radius half round arcs on the left side, connected to a 1-9/64" wide line segment with sightly beveled edges in the center, joined to a down-sloping twenty-two-point-five degree angled line that attaches to a 3/8" wide half round circle and a two tangent radius cyma reversa on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.750" / Depth of Cut = .639" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
