Door/Window Casing 3-3/4" - 21

Door/Window Casing 3-3/4" - 21

Door/Window Casing 3-3/4" - 21

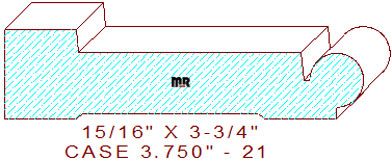

This pencil bead 3-3/4" - 21 door/window casing measures 3.750" wide by .938" thickness, requiring the use of five quarter lumber for milling. The attractive profile is comprised of 3/4" wide by 1/4" deep stepped lines on the left, connected to a 2-3/8" wide straight line segment with a 9/32" drop in elevation that transitions into a 1/16" wide sunk fillet, joined to a three-quarter round pencil bead with a 1/8" vertical line on the right side of the pattern. Try utilizing one of our many different fancy backband profiles on the outer edge of this pattern, create a stylish and unique door casing design for your beautiful home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.938
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 0.687
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
Not Needed
$286.00
$268.00
Total:
$684.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
Not Needed
$304.00
$286.00
Total:
$727.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
Not Needed
$322.00
$304.00
Total:
$770.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
