Door/Window Casing 3-3/4" - 22
Door/Window Casing 3-3/4" - 22

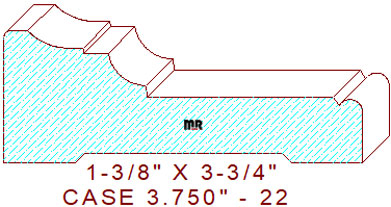

This hefty 3-3/4" - 22 door/window casing measures 3.750" wide by 1.375" thickness, allowing the detail to be machined out of six-quarter lumber. The bold profile is composed of a 1/4" broad flat line with a 1/16" eased outer edge on the left, connected to a shallow 19/32" radius cavetto with a 1/16" deep by 17/64" wide notch that joins to a 13/32" cove with a 1/8" vertical step, attached to a 2" broad line segment with a slightly beveled edge and a 1/4" wide half round bead on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 1.006
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$295.00
$277.00
Total:
$572.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$295.00
Total:
$608.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.00
$322.00
Total:
$662.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
