Door/Window Casing 3-3/4" - 30
Door/Window Casing 3-3/4" - 30

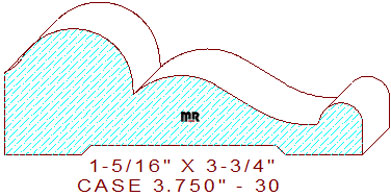

This extravagant 3-3/4" - 30 door/window casing measures 3.750" wide by 1.312" thickness, necessitating the pattern be machined from six-quarter lumber. The lavish profile is composed of a 3/64" eased edge at a 7/8" thickness dimension, joined to a shallow 3/8" cove tangent to a 5/8" convex arc on the top left, connected to a graceful two tangent radius s-shaped curvature in the center, merged with a 15/32 wide half round bead at a 35/64" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 1.159
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$261.00
(Template not needed)
$225.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$279.00
(Template not needed)
$243.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$297.00
(Template not needed)
$261.00
(Template not needed)
