Door/Window Casing 3-13/16" - 5

Door/Window Casing 3-13/16" - 5

Door/Window Casing 3-13/16" - 5

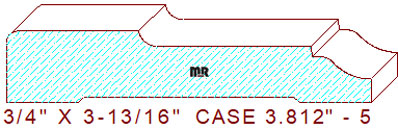

This distinctive 3-13/16" - 5 door/window casing measures 3.812" wide by .750" thickness. The profile is comprised of a 1-3/8" broad segment with a 1/8" eased edge, connected to a 1-13/16" wide cong'e consisting of a 3/16" cove, joined to a two tangent radius ogee on the thin side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.813
Depth of Cut: 0.500
Bottom Cutter Head
Width: 3.813
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$271.15
$271.15
Total:
$542.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.40
$289.40
Total:
$578.80
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$307.65
$307.65
Total:
$615.31
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
