Door/Window Casing 3-7/8" - 6
Door/Window Casing 3-7/8" - 6

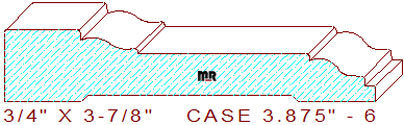

This colonial 3-7/8" - 6 door/window casing measures 3.875" wide by .750" thickness, enabling the detail to be milled from four-quarter lumber. The double ogee profile is composed of a 13/16" wide raised fillet with 3/64" eased edges on the left, connected to a two tangent radius cyma reversa with a 1/16" rounded vertical step joined to a 1-25/32" broad line segment in the center, attached to a 1/16" drop in elevation that merges with an 11/16" wide two tangent radius ogee and a 3/32" perpendicular notch on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.875
Depth of Cut: 0.594
Bottom Cutter Head
Width: 3.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$283.50
$283.50
Total:
$567.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.00
$302.00
Total:
$604.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$329.75
$329.75
Total:
$659.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
