Door/Window Casing 3-15/16"

Door/Window Casing 3-15/16"

Door/Window Casing 3-15/16"

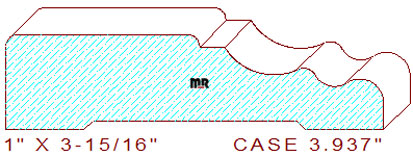

This historic 3-15/16" door/window casing measures 3.937" width by one-inch thickness utilizing a 4-3/16" wide blank of five-quarter lumber for milling on an industrial moulder. The stout profile contains a 2-1/32" broad raised fillet with 1/8" rounded corners on the top left. The inside round over connects to a 1/4" broad flat line segment in the center; transitioning into a 39/64" concave semicircle with wave-like downsloping arcs and a 1/2" half circle on the design's right side.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.938
Depth of Cut: 0.869
Bottom Cutter Head
Width: 3.938
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$296.15
$277.40
Total:
$573.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$314.90
$296.15
Total:
$611.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.66
$314.90
Total:
$648.56
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
